MRI ROOM

Medical Equipment in MRI, CT Scan, Cath Labs etc., are sensitive to the Temperature and Humidity

Keeping this in view , Specific ECS Units are designed to maintain stable Temperature & Humidity in the Diagnostic Centers. These are designed with absolute redundancy & Risk Management

Specific ECUs provide proper temperature & humidity -in Control Room, Scan Room & Equipment Room asper Vendor Specifications -which is vital for the performance of the Sensitive Equipment. Any deviation on Temperature & Humidity Levels can cause damage to the precise instruments of these machines

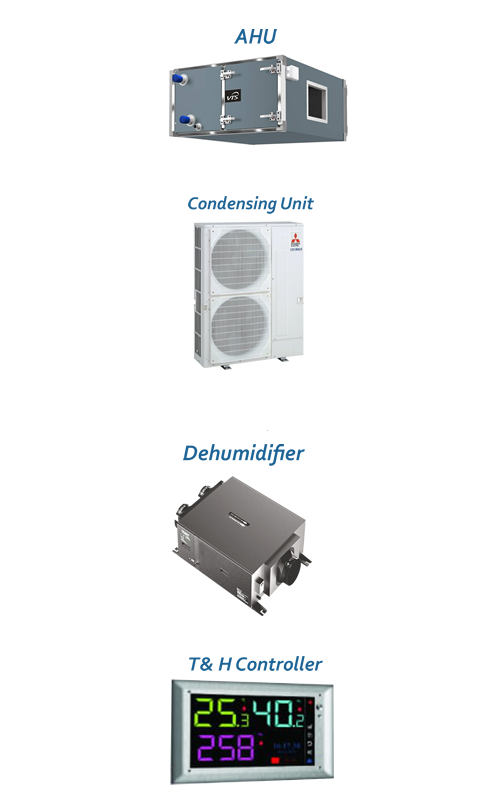

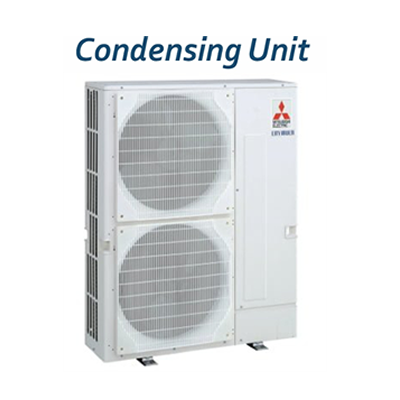

ECS units are available in both DX & Chilled Water Options. In Chilled Water application, the buildings primary chiller feeds the requirement of Chilled Water. For the stand alone MRI & Cath Labs DX application is available with energy Eƥ icient Variable Refrigeration Flow (VRF) Condensing Units. VRF Condensing Units are connected to specially designed Double Skin Air Handling Units to provide the Cooling & Humidity.

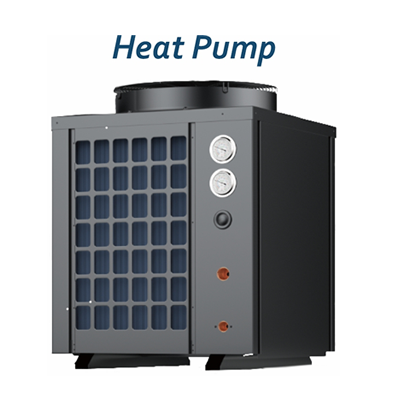

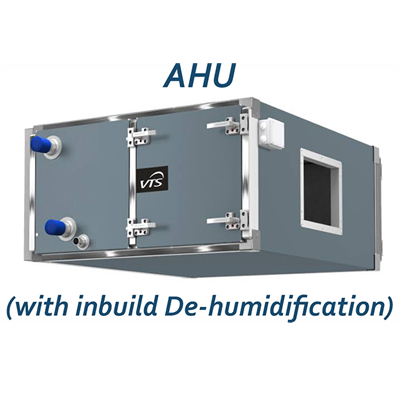

Air Handling Units have Cooling Coil, Heating Coil with dedicated Heat Pump for de-humidification process &Ultrasonic Humidifiers for regulating the humidity. AHUs have mixing Box for the return air, fresh air & the Exhaust for the stale air. AHUs are provided with VFD Drive Motors to save on energy as the System runs 24 x7. To maintain better Indoor Air Quality, AHUS are provided with Pre and Fine Filters to ensure Dust Free atmosphere in the Imaging Rooms

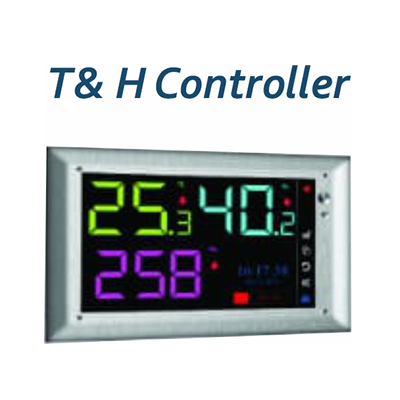

Specific ECS are provided with Touch Screen display Controller to display and modulate temperature &humidity. Besides ECS Controller display - Door Interlocking, Pre or Fine Filter, Modulating Valve On /Oƥ, AHU On /Oƥ, Humidification and Dehumidification Run Status. This Controller can be integrated to the Building Management System
